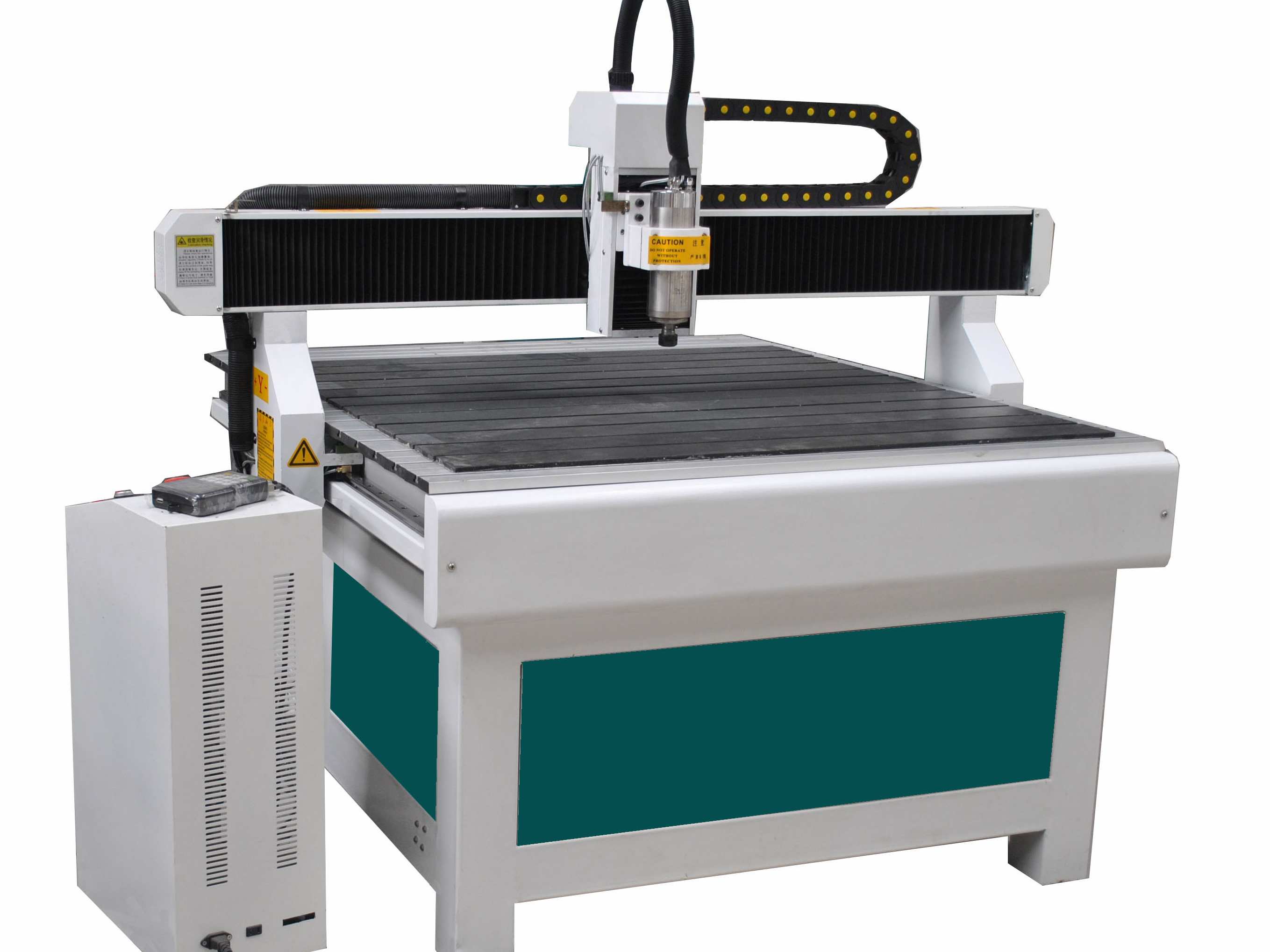

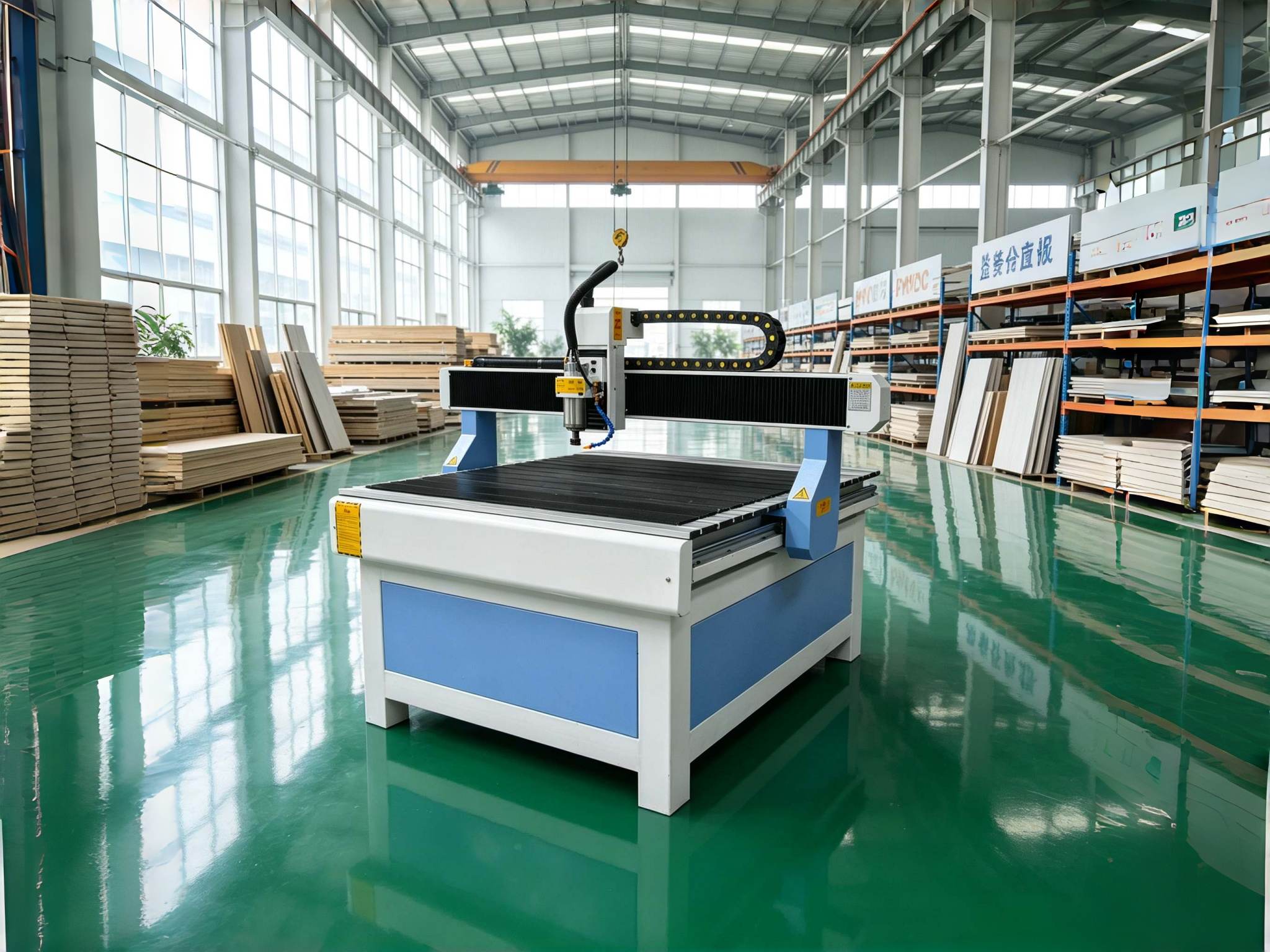

Small CNC Router machine GS-1212

inquiry

SPECIFICATION

WORKING   AREA

1200mm×1200mmx150mm

REPEATABILITY

0.04/300mm

SPINDLE POWER

2.2KW(Water Cooling)

GUIDE WAY

LINEAR(HIWIN)

ROUTER BITS DIAMETER

Φ3.175 Φ6Φ8

POWER

AC220V/50HZ

MOVING   SPEED

15m/min

WORKING   SPEED

12m/min

TRANSMISSION

BALL SCREW

Spindle   rotating speed

24000rpm

Command

G code*.u00*.mmg*plt

CONTROLLER

Ncworks

MOTOR

STEP MOTOR

ACCESSORY

DUST COLLECTOR




◆Adopt imported aquare orbit, double slippers, bearing heavy, working steadily, high precession, and long life time. Import ballscrew, high precision for cutting.

◆The optional equipment for spindle is Japan imported high power water cooling  motor high speed spindle, stable capability.

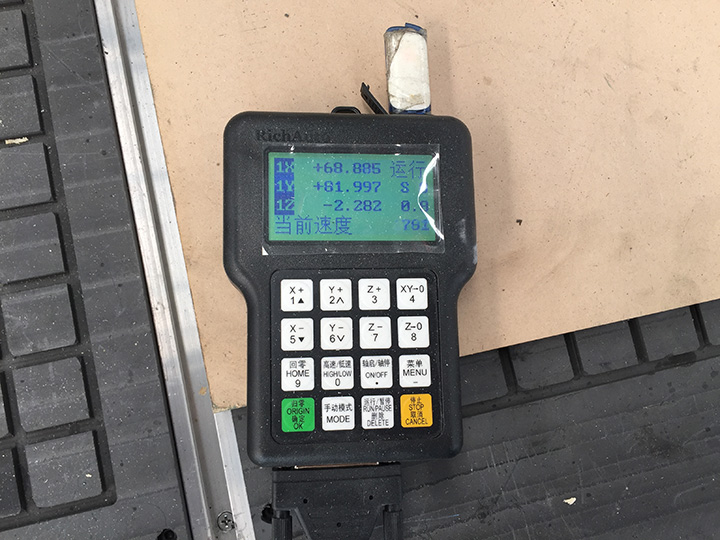

◆Adopting advanced DSP system, operate with the handle, convenient operation, humanization design.

◆Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/Castmate/Wentai ect

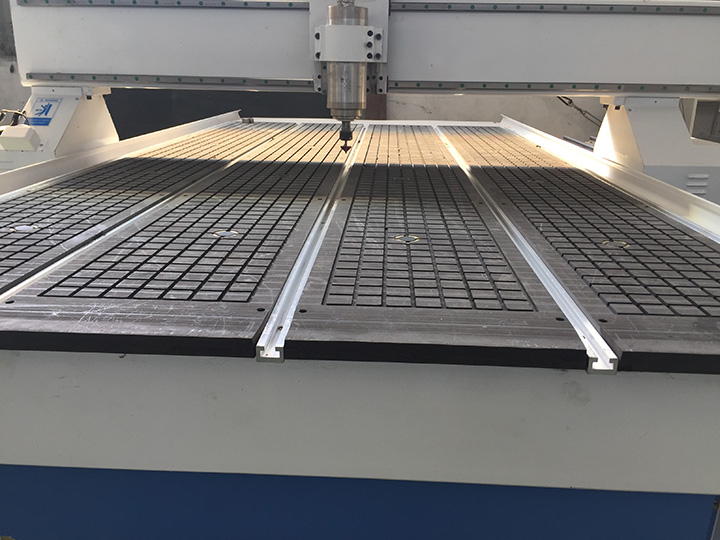

◆Vacuum table with 6 vacuum zones, which can absorb different size materials. No oil vacuum pump., high suction, more conveni-ent, atable capability.

◆Adopt high apeed stepper motor and drivers, and two motors for Y axis, Max speed is 25M/MIN. Auto ALIGNING System with air cooling spindle highly upgrade the processing speed.
